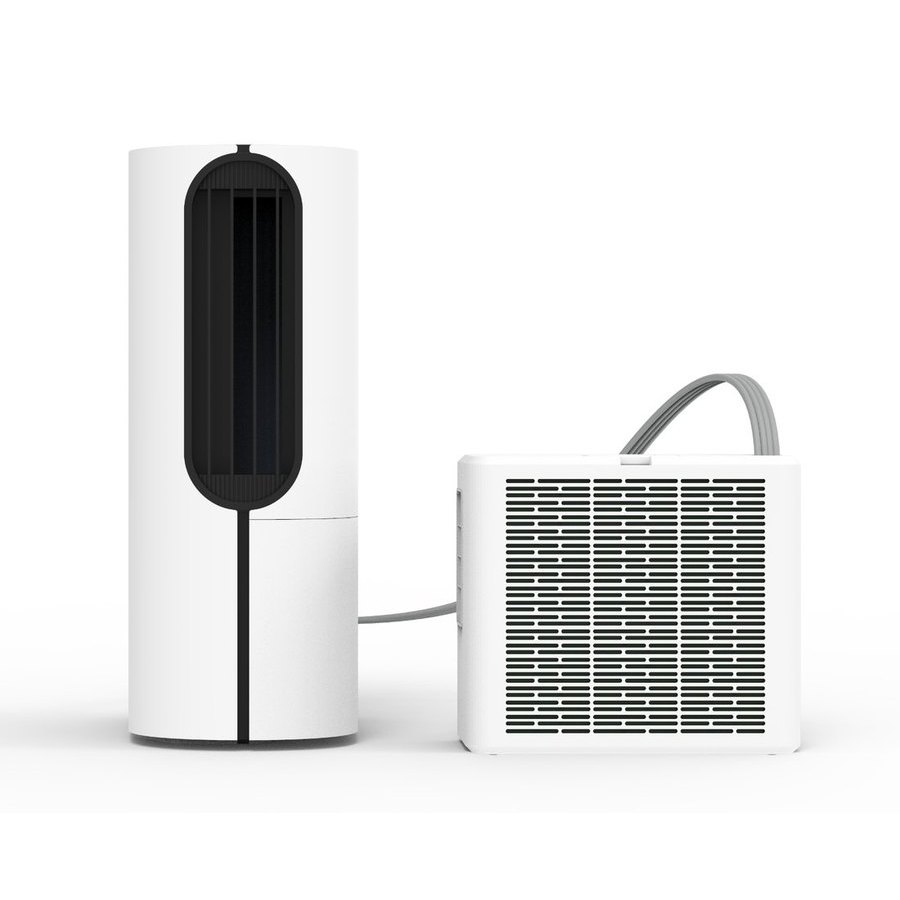

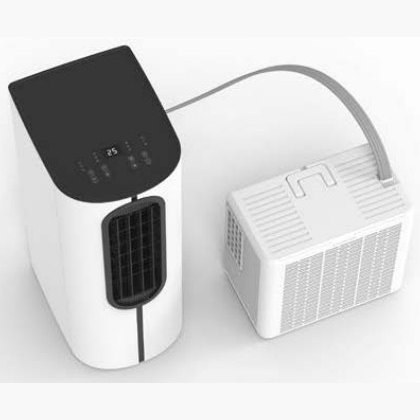

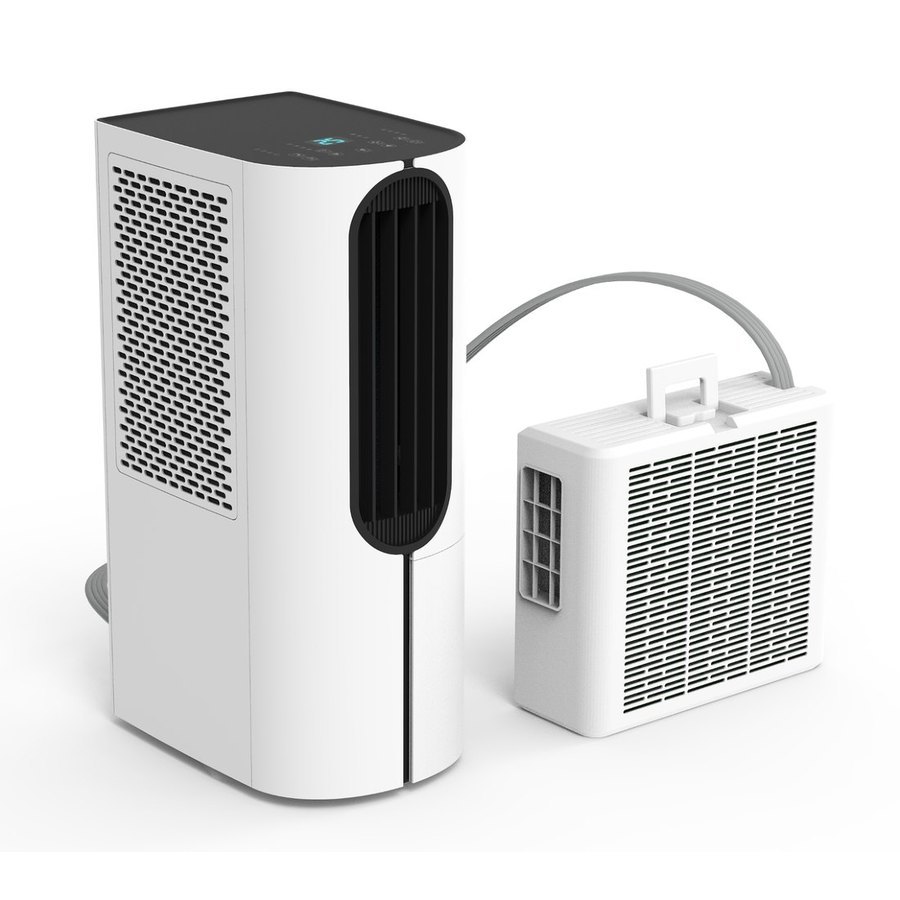

7,000 and 9,000 BTU split portable air conditioners — indoor tower plus compact outdoor condenser, R290, optional heating.
Sold to importers, distributors and retail brands. OEM / private label welcome. Voltage, plug type and packaging configured to your market.
| PC20S-22MA | ||||||||
| Model (GS/CE) | PC20S-22MA | PC25S-22MA | ||||||
| Control | Electric | Electric | ||||||
| Power Source | 220–240 V / 50 Hz or 220 V / 60 Hz | 220–240 V / 50 Hz or 220 V / 60 Hz | ||||||
| Cooling Capacity (W) / BTU | 2,000 W (7,000 BTU) | 2,500 W (9,000 BTU) | ||||||
| Cooling Power Consumption (W) | 625 | 780 | ||||||
| EER (W/W) | 3.2 | 3.2 | ||||||
| SEER (W/W) | 4.0 | 4.0 | ||||||
| Heating Capacity – optional (W) / BTU | 2,000 W (7,000 BTU) | 2,500 W (9,000 BTU) | ||||||
| Heating Power Consumption – optional (W) | 580 | 680 | ||||||
| COP (W/W) | 3.5 | 3.6 | ||||||
| Moisture Removed (L/Day, 30°C RH80%) | 30 | 50 | ||||||
| Indoor / Outdoor Air Volume (m³/h) | 360 / 600 | 360 / 600 | ||||||
| Noise – Indoor / Outdoor Sound Power (dB(A)) | 38–46 / 48 | 38–46 / 48 | ||||||
| Timer Setting | 0–24 hrs | 0–24 hrs | ||||||
| Compressor | Rotary type | Rotary type | ||||||
| Refrigerant | R290 | R290 | ||||||
| Use Area (m²) | 15 | 20 | ||||||
| Logistic Data | ||||||||
| Indoor Unit Dimension (H×W×D, mm) | 600 × 250 × 335 | 600 × 250 × 335 | ||||||
| Outdoor Unit Dimension (H×W×D, mm) | 350 × 335 × 220 | 350 × 335 × 220 | ||||||
| Packing Dimension (H×W×D, mm) | 672 × 536 × 387 | 672 × 536 × 387 | ||||||
| Indoor / Outdoor Net Weight (kg) | 16 / 4 | 17 / 4 | ||||||
| Gross Weight (kg) | 24 | 25 | ||||||
| Container Loading (20'FT / 40'GP / 40'HQ) | 190 / 396 / 528 | 190 / 396 / 528 | ||||||
No. Focusee portable air conditioners are self-contained: the compressor, condenser and evaporator sit in one wheel-mounted cabinet. You only route a flexible exhaust duct to a window or vent, then plug it in.
Yes. Our 1,000 to 4,000 BTU units suit tents, RVs, cabins and small server rooms, while 12,000 to 24,000 BTU models handle halls, warehouses and industrial spot cooling.
Yes. Voltage (110V / 220V, 50 or 60 Hz), plug type and the user manual are configured to your destination market — Type G for the UK, Type F for the EU, Type I for AU / NZ and Type A/B for North America.
Send us your target specification, market and volume — we will reply with the right model, its certification status and a formal quotation.
