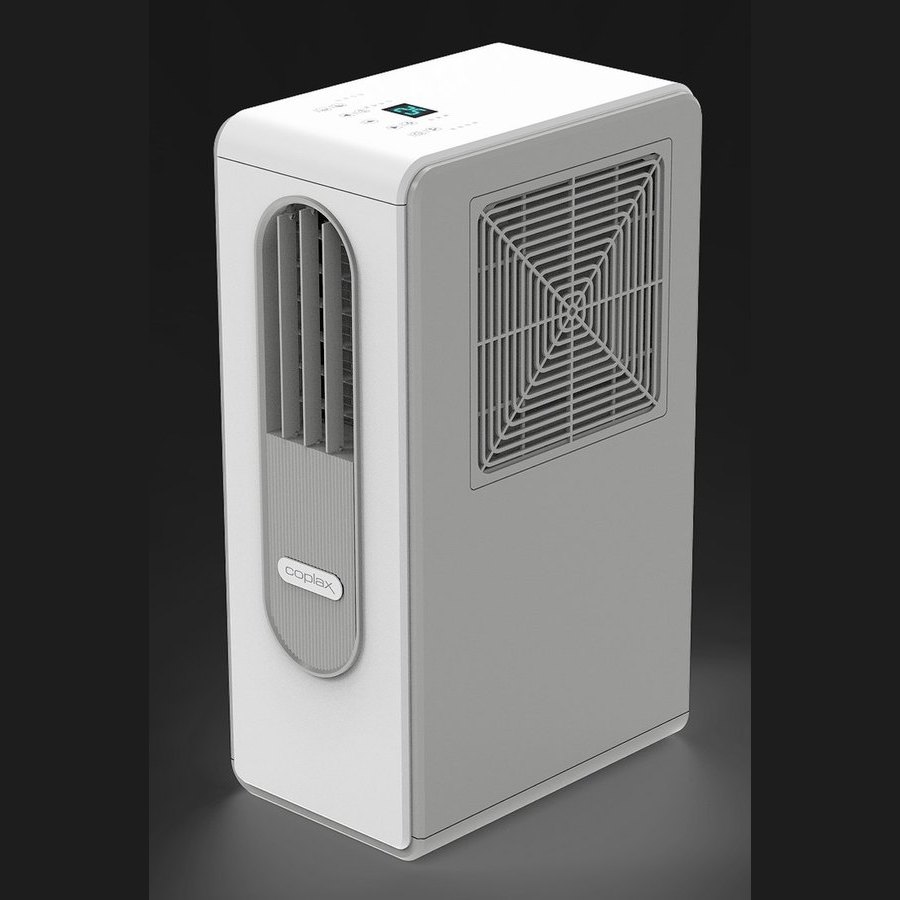

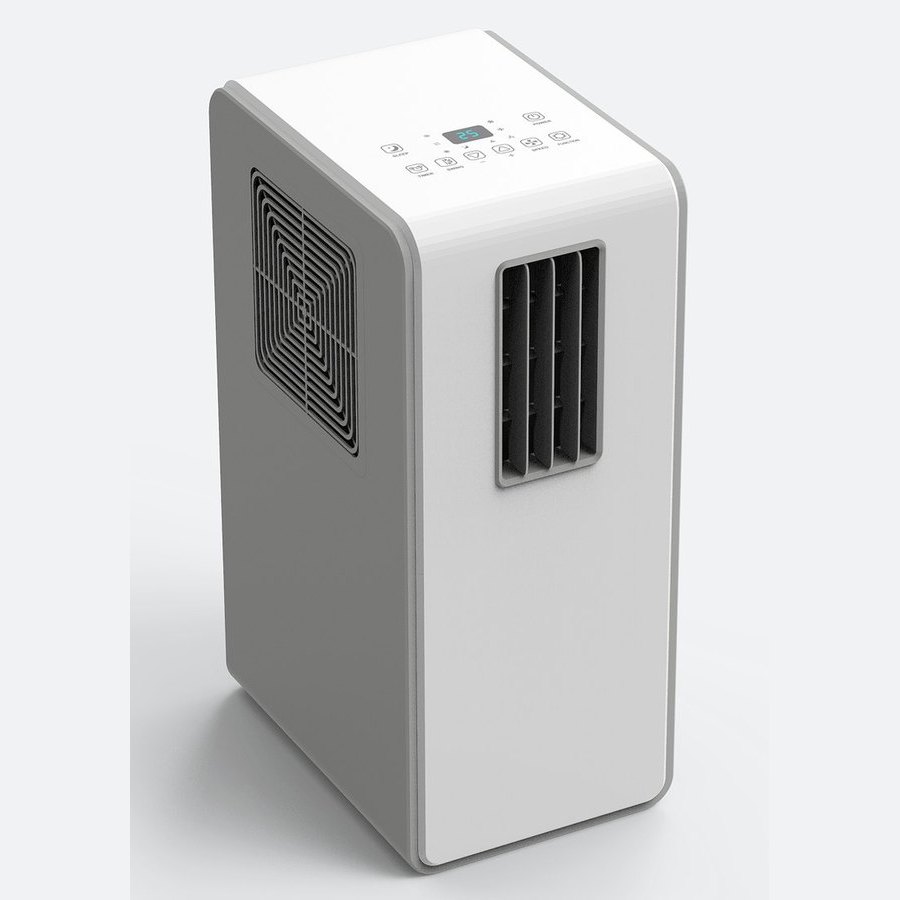

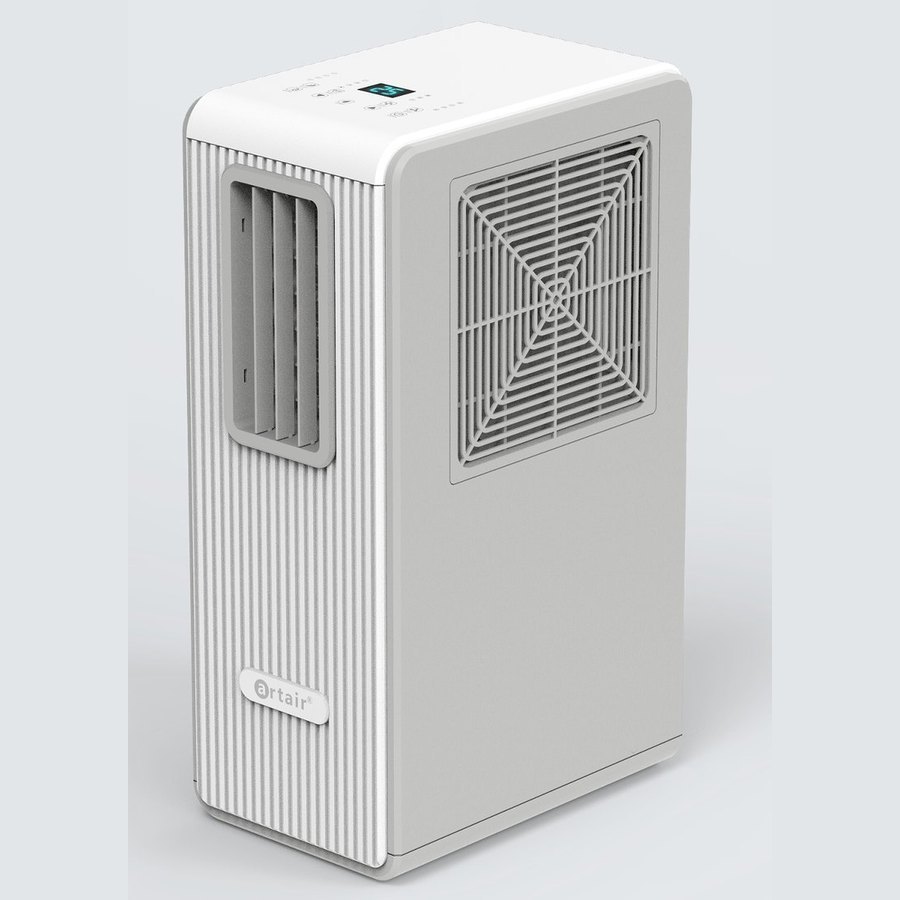

Three casing options on one 1,800 BTU platform — windowless evaporative-assisted cooling for counters, kiosks and small rooms.
Sold to importers, distributors and retail brands. OEM / private label welcome. Voltage, plug type and packaging configured to your market.
| PCX5R-18MA | ||||||||
| Model (GS/CE) | PCX5R-18MA | |||||||
| Cooling Capacity (W) / BTU | 500 W (1,800 BTU) | |||||||
| Cooling Power Input (W) | 200 (max. 300) | |||||||
| Cooling Current Input (A) | 0.87 (max. 1.30) | |||||||
| Dehumidifying Capacity (L/Day) | 15 | |||||||
| Cold Air Temperature Drop (°C) | 10–14 | |||||||
| Operating Ambient Temperature (°C) | 5–45 | |||||||
| Air Flow Volume (m³/h) | 120 | |||||||
| Noise – Sound Power (dB(A)) | 38–44 | |||||||
| Noise – Sound Pressure (dB(A)) | 54–58 | |||||||
| Compressor | Reciprocating type | |||||||
| Refrigerant | R290 | |||||||
| Voltage / Frequency | 220–240 V / 50 Hz | |||||||
| Standard Colours | White / Black / Grey | |||||||
| Logistic Data | ||||||||
| Product Dimension (H×W×D, mm) | 550 × 215 × 335 | |||||||
| Packaging Dimension (H×W×D, mm) | 655 × 267 × 387 | |||||||
| N.W / G.W (kg) | 12.8 / 14.2 | |||||||
| Container Loading (20'FT / 40'GP / 40'HQ) | 378 / 792 / 1,056 | |||||||
No. Focusee portable air conditioners are self-contained: the compressor, condenser and evaporator sit in one wheel-mounted cabinet. You only route a flexible exhaust duct to a window or vent, then plug it in.
Yes. Our 1,000 to 4,000 BTU units suit tents, RVs, cabins and small server rooms, while 12,000 to 24,000 BTU models handle halls, warehouses and industrial spot cooling.
Yes. Voltage (110V / 220V, 50 or 60 Hz), plug type and the user manual are configured to your destination market — Type G for the UK, Type F for the EU, Type I for AU / NZ and Type A/B for North America.
Send us your target specification, market and volume — we will reply with the right model, its certification status and a formal quotation.
