Home/Products/Portable Air Con./PCX12R-22MA

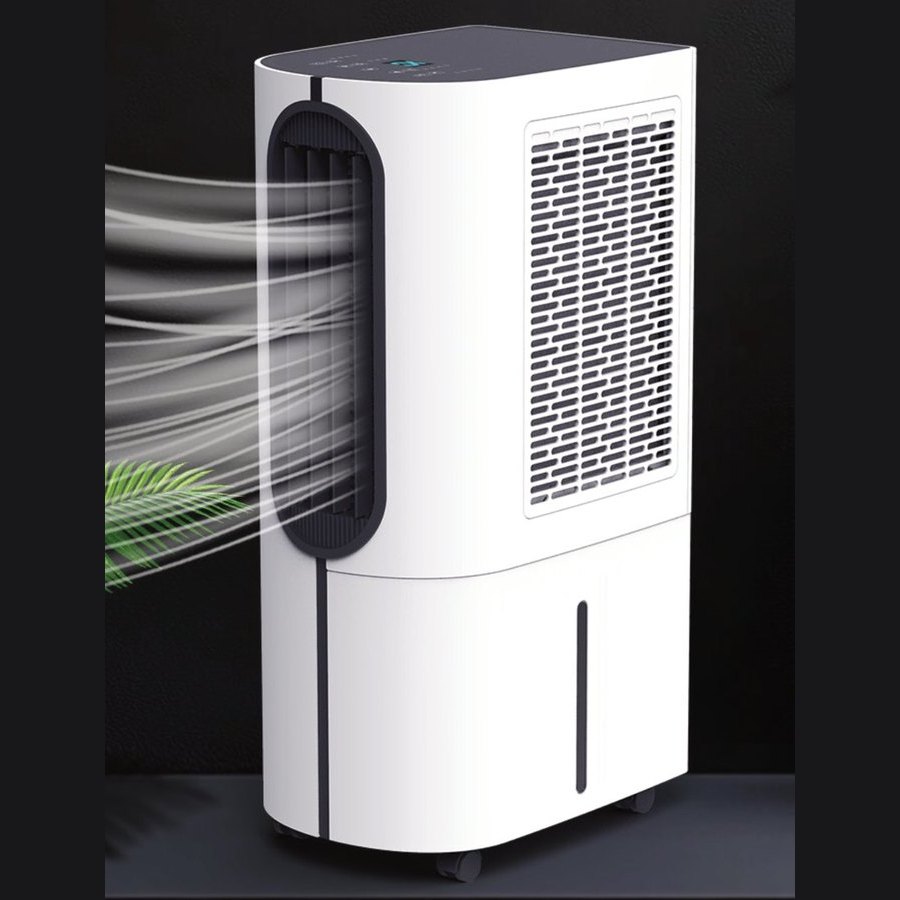

PCX12R-22MA portable air conditioner, view 1
Portable Air Con.

PCX12R-22MA

4,000 BTU water-assisted portable air conditioner with windowless operation, A+ energy class and 20 L/Day dehumidifying.

  • PCX12R-22MA: 4,000 BTU
  • Cooling by compressor and water both · 20–30 L/Day dehumidifying
  • MOQ: 20’FT*1 (mixed models)
1,200 W (4,000 BTU)COOLING CAPACITY (BTU)
R290REFRIGERANT
20’FT*1 (mixed models)MINIMUM ORDER
Request quotation Enquire on WhatsApp

Sold to importers, distributors and retail brands. OEM / private label welcome. Voltage, plug type and packaging configured to your market.

Specification

PCX12R-22MA — Specification

PCX12R-22MA
Model (GS/CE)PCX12R-22MA
Cooling Capacity (W) / BTU1,200 W (4,000 BTU)
Cooling Power (equivalent)Similar to 3,500 W (12,000 BTU)
Cooling Power Input (W)360 (max. 460)
Cooling Current Input (A)1.57 (max. 2.00)
Dehumidifying Capacity (L/Day)20
Cold Air Temperature Drop (°C)10–16
Operating Ambient Temperature (°C)5–45
Air Flow Volume (m³/h)180
Noise – Sound Power (dB(A))38–46
Noise – Sound Pressure (dB(A))54–60
CompressorReciprocating or rotary type
RefrigerantR290
Voltage / Frequency220–240 V / 50 Hz
Standard ColoursWhite / Black
Energy Class (water + hose)Class A+, 3.2 W/W
Logistic Data
Product Dimension (H×W×D, mm)600 × 250 × 336
Packaging Dimension (H×W×D, mm)668 × 306 × 388
N.W / G.W (kg)14 / 16
Container Loading (20'FT / 40'GP / 40'HQ)320 / 645 / 860

Functions

Electronic PanelYES
ECO mode (compressor + water cooling)YES
Full-colour giftbox (orders below 2x40'HQ per model)Optional
Extra manual languages (beyond 3)Optional
Remote ControlYES
Exhaust pipeNO
Window adaptorNO
External drainage water trayYES
Drain water pipeNO
Auto-restartYES
Protective film for transportYES
Quiet operationYES
Auto operationYES
Fan speed adjustable 3 steps and sleepYES
Auto vertical air louversYES
Manual horizontal air louversYES
CastersYES
Auto DiagnosisYES
Dust filterYES
Error display and protectionYES
Flexible wiring connectionNO
DefrostingYES
Low-voltage start-upYES
Independent DehumidificationYES
Energy-saving sleep modeYES
Two-direction airflowYES
ON timerYES, 1-24 hours
OFF timerYES, 1-24 hours
WiFi (TUYA module)Optional
Exhaust hose + adaptors, without window kitOptional
Exhaust hose + adaptors, with window kitOptional
Oil-smoke filter (kitchen use)Optional
Plasma air-purifying moduleOptional
Outer 2nd carton boxOptional
PreviousPCX5R-18MDNextPCX15R-22MA
Related models

More Portable Air Con.

Portable AC PCR-RMA portable air conditioner, view 1

PCR-RMA

PCR-RMA: 5,000/ 6,000 BTU

View details
Portable AC PC-CMA portable air conditioner, view 1

PC-CMA

PC-CMA: 1000~1100 BTU

View details
Portable AC PCX-12MA portable air conditioner, view 1

PCX-12MA

PCX-12MA: 600/ 900 BTU

View details
Portable AC PC-PMC portable air conditioner, view 1

PC-PMC

PC-PMC: 5000/ 7000/ 9000/ 10000/ 12000 BTU

View details
Buyer questions

Portable Air Con. — frequently asked questions

Do portable air conditioners need an outdoor unit?

No. Focusee portable air conditioners are self-contained: the compressor, condenser and evaporator sit in one wheel-mounted cabinet. You only route a flexible exhaust duct to a window or vent, then plug it in.

Can I use a portable AC in a tent, RV or server room?

Yes. Our 1,000 to 4,000 BTU units suit tents, RVs, cabins and small server rooms, while 12,000 to 24,000 BTU models handle halls, warehouses and industrial spot cooling.

Do you customise voltage and plug for my market?

Yes. Voltage (110V / 220V, 50 or 60 Hz), plug type and the user manual are configured to your destination market — Type G for the UK, Type F for the EU, Type I for AU / NZ and Type A/B for North America.
